BIDIR Module

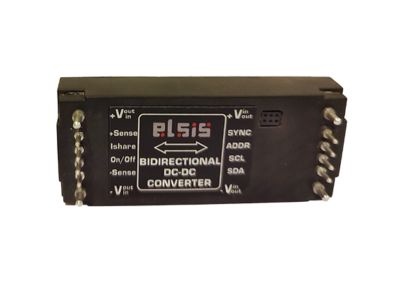

Bi-directional DC/DC Converter
GENERAL INFORMATION
The ELSİS BIDIRECTIONAL DC-DC Converter can be used at two way power delivery applications. While charging the battery at the output with the energy at the input, when the input energy is cut off, it can transmit the energy it receives from the battery at the output to its input in a regulated manner and continues to feed the system it is connected to without interruption.
The ELSİS BIDIRECTIONAL DC-DC Converter can deliver up to 500W with high efficiency. Thanks to fully digital and automated Buck-Boost power converter topology design, brick module output voltage and current can be set on the fly by a master controller.
TECHNICAL SPECIFICATIONS
Input Features
Input Voltage | 9-60 Vdc |
Output Features
Soft-Start Feature | |
Max. Output Power: | 500 W |
Efficiency | >%97 |
Operational Features
High Effiency, more than 97% at full rated load current | |
I2C Control & Measurement Facility | |
Soft-Start Feature | |
Input Voltage Range | |
Soft-Start Feature | |
Soft-Start Feature | 9-60 VDC |
Maximum Output Power | 500 Watt |
Wide Adjustable Output Voltage Range | 3,3-48 VDC |
Low Output Voltage Ripple and Noise | |
Minimal External Components Required | |
Operating Baseplate Temperature Range | -40°C +100°C |
Protection Features
Input Under – voltage Protection |
Input Over – voltage Protection |
Input Over – current Protection |
Output Over – current Protection |
Thermal Shutdown Protection |
Output Short-circuit Protection |
Digitally Configurable Auto-Restart or Latch-Off |
Mechanical Features
Industry Standard Eighth-Brick Configuration | |
Sizes | 25,90mm × 61,72mm |
Total Height Without Pin | 12,5mm |
Total Height With Pin | 17,5mm |
Total Weight | 66,2g |
Baseplated Model for Thermal Performance |
Control and Interface Features
Digital IO Control Interface: On/Off, Fault, Address, Ishare (3.3V and 5V Compatible Logic Input/Output) |
I2C Communication Interface |
CC / CV Battery Charging |
